Located in the heart of Manama, Bahrain, Junaid Metals has built a strong reputation as a trusted partner in the industrial supply chain. We take pride in providing high-quality materials that meet the rigorous demands of modern engineering, with a special focus on our premium Titanium Grade 9 bars and rods. This particular alloy stands out for its exceptional balance of strength and versatility, making it an ideal choice for projects where reliability and performance in challenging environments are absolutely essential.
Titanium Grade 9, also known as Ti 3-2.5, is distinguished by its specific composition of titanium alloyed with approximately 3% aluminum and 2.5% vanadium. This carefully balanced recipe gives the material a remarkable set of mechanical properties. It offers excellent strength, similar to Grade 5 titanium, but with superior weldability and formability. Furthermore, it maintains outstanding corrosion resistance, even in saltwater and chlorinated environments. Its excellent ductility also makes it easier to fabricate into complex components compared to other high-strength titanium alloys.
| Grade | GRADE 9 TITANIUM ROUND BAR |
|---|---|

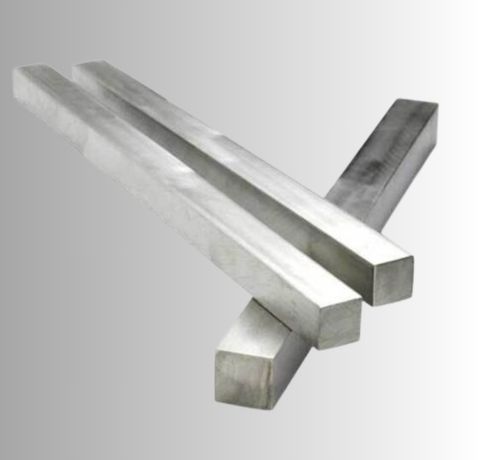

| Grade 9 Titanium Square bar size | 4 to 100mm |

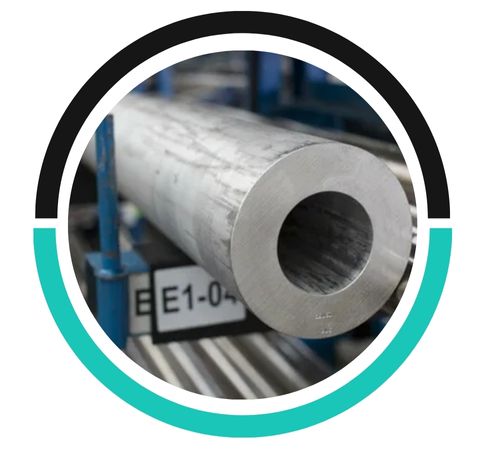

| Titanium Grade 9 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |

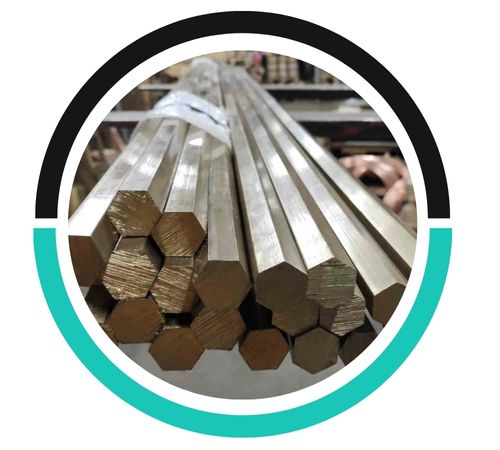

| Grade 9 Titanium Alloy Hex Bar size | 2-100mm A/F |
| Grade 9 Titanium Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

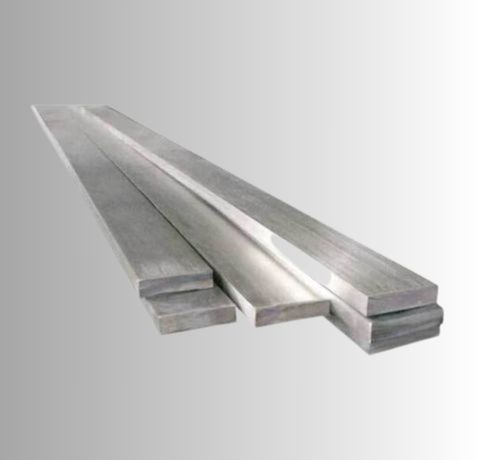

| Titanium Grade 9 Rectangles Size | 33 x 30mm to 295 x 1066mm |

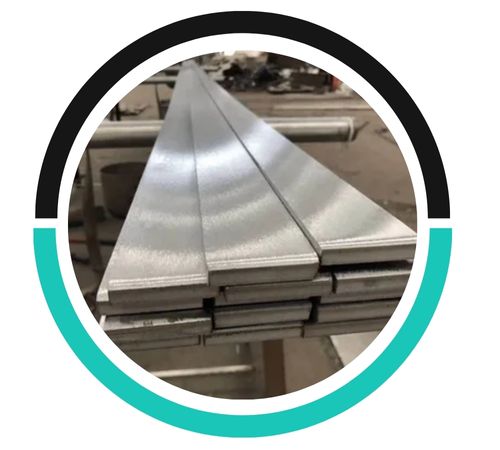

| Grade 9 Titanium Alloy Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Grade 9 Titanium Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Titanium Grade 9 Section | 3.0 to 12.0mm thickness |

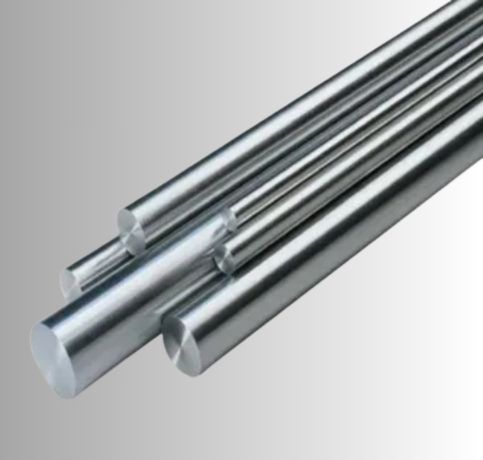

| Grade 9 Titanium Alloy Round bar size | Diameter: 3-~800mm |
| Grade 9 Titanium Billet Size | 1/2″ to 495mm Diameter |
| Titanium Grade 9 Round Bar Standard Dimensions | Diameter / Height: |
| Grade 9 Titanium Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Titanium Grade 9 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Grade 9 Titanium Alloy Technique | Grade 9 Titanium Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Grade 9 Titanium Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |

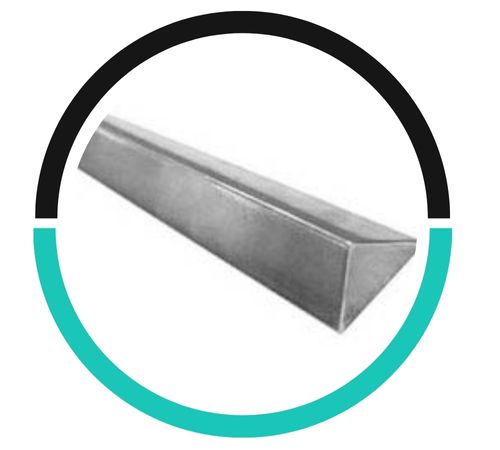

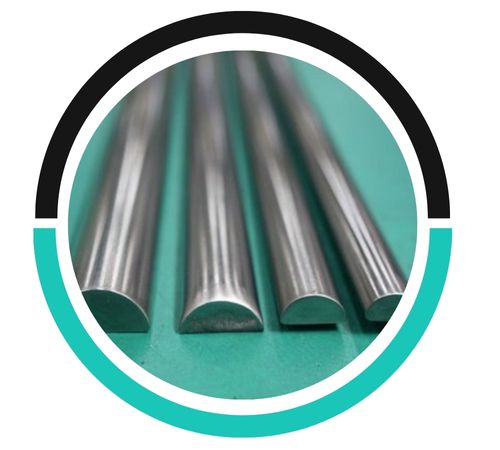

| Form | Grade 9 Titanium Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Grade 9 Titanium Round bar conforms to NACE MR0175/ISO 15156 | |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 9 | 3.7195 | R56320 |
| Grade | C | N | O | H | Ti | Fe | Al | Pd |
| Titanium Gr 9 | .08 max | .03 max | .25 max | .015 max | Bal | 0.30 max | – | .12 – .25 |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 620 | 520 | 15 % |
| Physical Properties | Metric | English |
|---|---|---|
| Density | 4.48 g/cc | 0.162 lb/in³ |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |

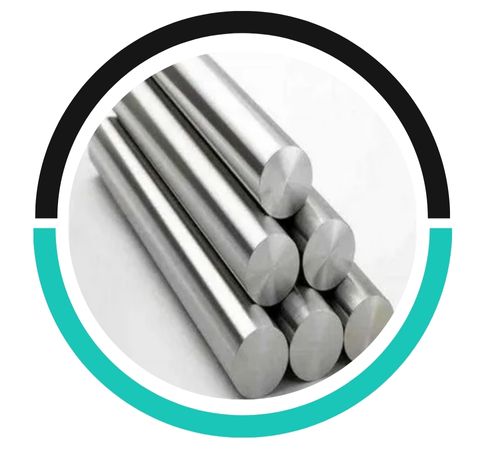

| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Grade 9 Titanium Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@junaidmetals.com
Yes, Titanium Grade 9 Bars and Rods are suitable for hygienic and sanitary applications due to their excellent corrosion resistance, non-reactivity, and ability to withstand high temperatures, ensuring safety and durability.
The unique blend of properties in Titanium Grade 9 bars and rods makes them incredibly valuable across numerous sectors. They are a preferred material in aerospace for airframe and engine components, and in marine engineering for propeller shafts and offshore rig fittings due to their saltwater resistance. The medical field relies on them for surgical implants and instruments, while the automotive and chemical processing industries use them for critical parts that must withstand high stress and corrosive media, ensuring long-lasting performance and safety.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Junaid Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Manama, Bahrain
