Junaid Metals, a reputable manufacturer and supplier located in Manama, Bahrain, has built a solid reputation for providing top-notch Titanium Grade 1 Bars and Rods to a diverse range of industries. With a keen emphasis on precision, reliability, and adherence to international quality standards, the company guarantees that every product performs exceptionally and lasts long. The Titanium Grade 1 Bars and Rods from Junaid Metals are highly regarded for their remarkable corrosion resistance, excellent formability, and lightweight strength. Thanks to advanced manufacturing techniques and rigorous quality control, Junaid Metals consistently meets the needs of sectors like aerospace, chemical processing, marine engineering, and medical technology with outstanding results.
These Titanium Grade 1 Bars and Rods are primarily made from commercially pure titanium, containing at least 99% titanium along with small amounts of iron, oxygen, carbon, and nitrogen. This unique composition gives them excellent corrosion resistance, superior ductility, and impressive formability. On the mechanical side, Titanium Grade 1 boasts moderate tensile and yield strength, making it perfect for applications that require flexibility and easy fabrication. Its high impact toughness and exceptional resistance to chloride and oxidizing environments further boost its performance. These qualities make Titanium Grade 1 one of the most versatile and dependable titanium grades on the market.
| Standards : | ASTM B348, B863 / ASME SB 348, SB 863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

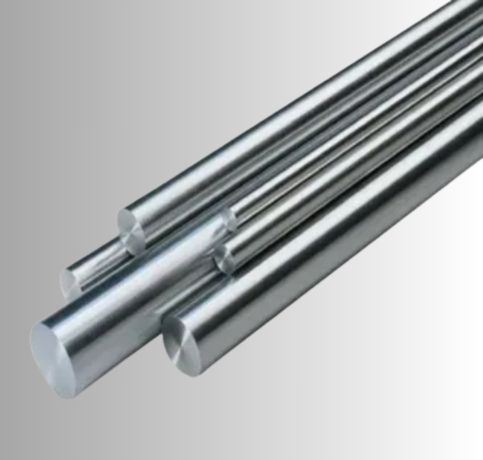

| Round bar size : | Diameter: 3-~800mm |

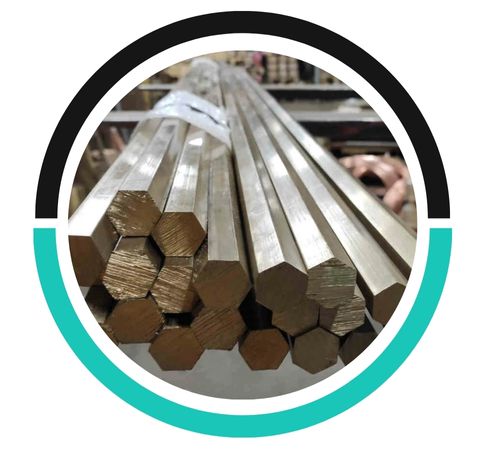

| Hex Bar size : | 2-100mm A/F |

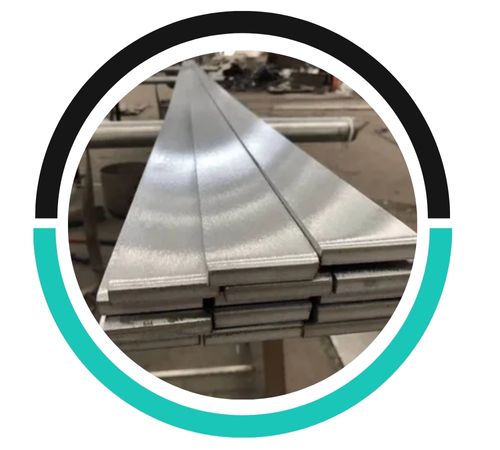

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

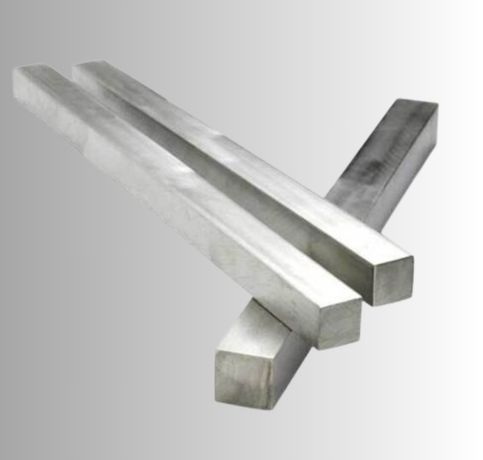

| Square bar size : | 4 to 100mm |

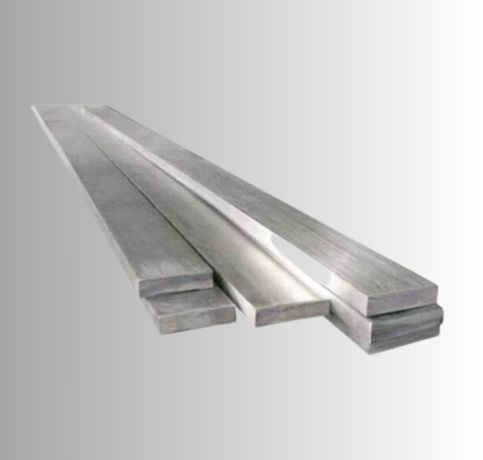

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 1 | 3.7025 | R50250 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 1 | 0.08 max | 0.03 max | 0.18 max | 0.015 max | Bal | 0.20 20 |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 240 | 170 | 24 % |
| Physical Properties | Metric | English |
|---|---|---|
| Density | 4.51 g/cc | 0.163 lb/in³ |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 1 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@junaidmetals.com
You’ll find Titanium Grade 1 Bars and Rods widely used in industries that demand superior corrosion resistance, lightweight strength, and excellent biocompatibility. They’re commonly found in chemical processing equipment, heat exchangers, condensers, and marine components, thanks to their ability to endure harsh and corrosive conditions. In the aerospace industry, they’re utilized for airframe structures and various non-critical components. The medical field relies on them for surgical instruments and implantable devices due to their high purity and compatibility with the human body. Additionally, they play a role in desalination plants, showcasing their versatility and reliability across multiple applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Junaid Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Manama, Bahrain
