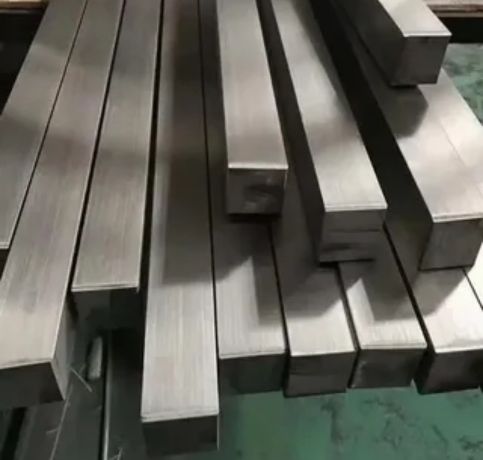

Nestled in the heart of Manama’s industrial landscape, Junaid Metals has built a reputation for supplying high-grade materials with unwavering reliability. Our Stainless Steel 321H Square Bars & Rods are a prime example of this commitment, specifically engineered for projects that demand exceptional strength and resilience under intense heat. We understand that the integrity of your work depends on the quality of your materials, which is why we ensure every bar meets the highest standards, providing a robust foundation for critical applications across various demanding sectors.
The exceptional durability of 321H stems from its precise composition, which is stabilized with titanium to prevent corrosion in high-temperature settings. This alloy delivers impressive mechanical properties, including high tensile strength and excellent creep resistance, meaning it maintains its structural integrity even when subjected to prolonged stress and extreme heat. These characteristics make it a fundamentally reliable choice, offering a combination of toughness and longevity that outperforms many standard grades, ensuring your constructions are built to last.
Stainless Steel 321H Square Bars Specification :
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 321H | 0.04 – 0.10 | 17.0 – 19.0 | 2.00 max. | 9.0-12.0 | 0.045 max. | 0.03 max. | 0.75 max. |
| Grade | Tensile Str (MPa) min | Yield Str 0.2% Proof (MPa) min | Elong (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 321H | 515 | 205 | 40 | 95 | 217 |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 321H | 1.4438 | S32109 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Yes, Stainless Steel 321H Square Bars are highly corrosion-resistant due to the addition of titanium, which helps prevent sensitization in high-temperature environments. They are ideal for applications in corrosive environments, offering excellent durability.
Stainless Steel 321H Square Rods offer excellent resistance to high-temperature oxidation, excellent weldability, and exceptional strength at elevated temperatures. They are ideal for applications in the chemical, petrochemical, and power generation industries.
Yes, Stainless Steel 321H Square Bars can be customized in size and length to meet specific requirements. Customization options are available based on customer needs for various applications.
The unique properties of these square bars and rods make them indispensable in environments where failure is not an option. They are extensively used in the fabrication of heat exchangers, industrial furnace components, and high-temperature piping systems, particularly in petrochemical and power generation plants. Their robust form is also ideal for constructing structural frameworks, fasteners, and machinery parts that must withstand aggressive conditions, providing engineers and fabricators with the confidence that their creations can endure the toughest operational challenges.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
