Here in Manama, Junaid Metals stands as your trusted partner for premium stainless steel solutions, specializing in Stainless Steel 316Ti round bars and rods. We understand that your projects demand materials that offer unwavering reliability, especially when facing corrosive environments. That’s why we provide 316Ti, a grade specifically enhanced for superior performance where standard stainless steels might fall short. Our commitment is to supply products that not only meet but exceed the rigorous standards required by Bahrain’s diverse and demanding industries, ensuring your operations run with confidence and efficiency.
The strength of 316Ti lies in its thoughtful composition, where titanium is added to the robust 316 stainless steel formula. This key addition stabilizes the material against a specific kind of corrosion that can occur in welded components, greatly enhancing its durability. In practical terms, this means the round bars and rods possess excellent toughness and high tensile strength, allowing them to maintain their integrity under significant stress and elevated temperatures. This combination of chemical resistance and mechanical robustness makes it a fundamentally dependable choice for critical applications.
| Specifications | ASTM A276 / ASME SA276 & ASTM A479 / ASME SA276 |
| Range | 3.17 MM TO 350 MM DIA |
| Dia Meter | 25mm to 152mm |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Finish | Bright, Polish & Black |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging etc |
| Condition | Cold Drawn & Polished Cold Drawn, Centreless Ground & Polished |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316TI | min. | – | – | – | – | – | 16.0 | 2.0-3.0 | 10.0 | – |
| max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | 0.1 | ||
|
Yield Strength
0.2% Proof
(MPa) |
Tensile strength
(MPa)
|
Elongation
(% in 50mm) |
Hardness (HRB) | |
|---|---|---|---|---|
|
MIN |
170 |
485 |
40.00 |
|
|
MAX |
95 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | BS | AFNOR | EN |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 08Ch17N13M2T | 320S31 | Z6CNDT17‐12 | X6CrNiMoTi17-12-2 |
| Density | kg/dm³ | 8 |
|---|---|---|
| Modulus of elasticity | GPa | 200 |
| Thermal conductivity | W/m°C | 15 |
| Heat capacity | J/kg°C | 500 |
| Electrical resistivity | µΩm | 0.75 |
| Poissons ratio | 0.3 |
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
|---|---|---|---|---|---|---|---|---|
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 |

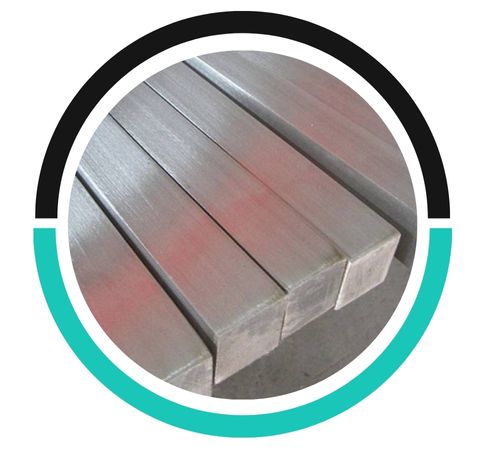

We supply a wide range of 316Ti Stainless Steel Bars and Rods, including round bars, square bars, hexagonal bars, flat bars, hollow bars, and rectangular bars. These products are available in various sizes and shapes to meet the diverse needs of different industries.
Junaid Metals is a leading manufacturer and supplier of premium-quality Stainless Steel 316Ti Bars and Rods, catering to industrial, commercial, and personal needs across the Bahrain and worldwide.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@junaidmetals.com
You’ll find Stainless Steel 316Ti round bars and rods performing essential roles in areas where failure is not an option. They are ideally suited for the chemical processing industry, used in reactors and piping systems that handle aggressive acids. Within power generation, these components are vital for turbines and heat exchangers. They also see extensive use in pharmaceutical equipment, marine applications, and architectural features in coastal areas, proving their worth anywhere superior corrosion resistance and structural strength are paramount for long-term, safe operation.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Junaid Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Manama, Bahrain
