Operating from the heart of Manama, Bahrain, Junaid Metals has established itself as a trusted supplier for some of the most demanding industrial applications. We specialize in providing high-performance materials like Nitronic 50 Bar and Rod, renowned for their exceptional strength and corrosion resistance. Our commitment is to deliver not just a product, but a reliable engineering solution that meets the rigorous standards of our clients across the region, ensuring their projects are built on a foundation of proven durability and quality.
At the core of Nitronic 50 is a unique composition that blends chromium, nickel, and manganese with a controlled nitrogen content. This specific recipe gives the material its remarkable characteristics, offering a yield strength that is roughly double that of common stainless steels like 304. It maintains excellent toughness and resists a wide range of corrosive threats, from saltwater to acidic environments, all while exhibiting good resistance to wear and galling, making it a robust choice for challenging conditions.
| Grade | Nitronic Alloy 50 / XM-19 (UNS No. S20910) |
|---|---|
| Specification | DIN, JIS, ASTM, BS, ASME, AISI |

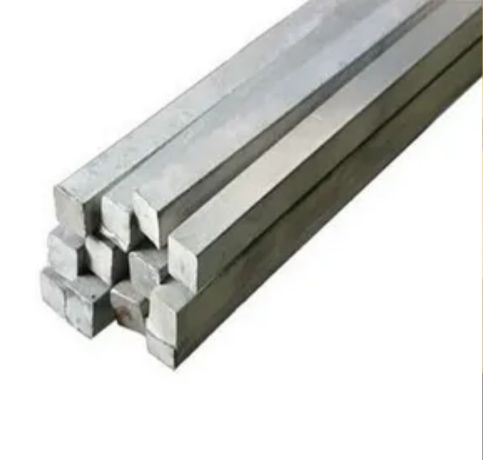

| Nitronic 50 Square bar size | 4 to 100mm |
| Nitronic Alloy 50 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Nitronic Alloy UNS S20910 Hex Bar size | 2-100mm A/F |
| Nitronic 50 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

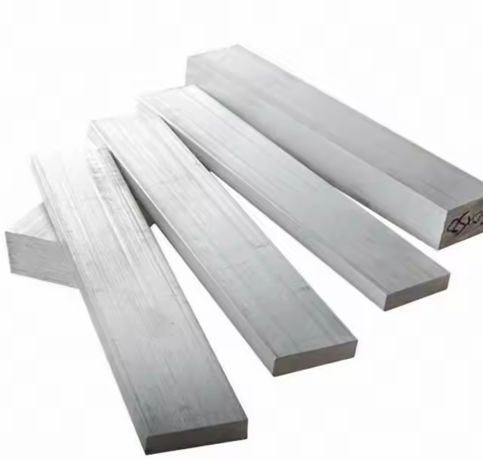

| Nitronic Alloy 50 Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Nitronic Alloy UNS S20910 Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nitronic 50 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Nitronic Alloy 50 Section | 3.0 to 12.0mm thickness |

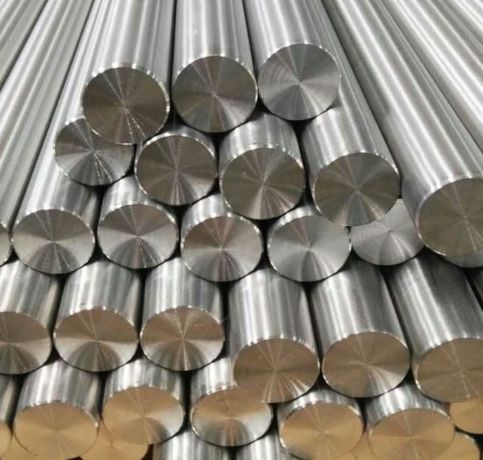

| Nitronic Alloy UNS S20910 Round bar size | Diameter: 3-~800mm |
| Nitronic 50 Billet Size | 1/2″ to 495mm Diameter |
| Nitronic Alloy 50 Round Bar Standard Dimensions | Diameter / Height: |
| Nitronic 50 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nitronic Alloy 50 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Nitronic Alloy UNS S20910 Technique | Nitronic 50 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nitronic 50 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Nitronic 50 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nitronic 50 Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy 50 | .06 | .10 | 0.03 | 1.00 | 0.20 – 0.40 | 11.50 – 13.50 | 20.50 – 23.50 |
| Hardness MAX, Brinell | 241 |
| Ultimate Tensile Strength, ksi | 95 |
| 0.2% Yield Strength, ksi | 50 |
| Elongation, % | 35 |
| Reduction of Area, % | 55 |
| STANDARD | UNS | DIN |
|---|---|---|
| Nitronic 50 | S20910 | 1.3964 |
Nitronic 50 rods typically come in diameters ranging from 1/8" to 6" and lengths from 12" to 144". Custom sizes may also be available based on specific requirements.
Yes, Nitronic 50 bar can be welded using conventional methods like TIG and MIG welding. However, proper preheat and post-weld heat treatment are recommended for optimal results.
Nitronic 50 rods are available in various sizes, ranging from 1/8" to 12" in diameter. Finishes include mill, polished, and ground, depending on specific requirements and applications.
The superior properties of Nitronic 50 Bar and Rod make it an indispensable material for challenging environments. You will often find it in critical components for the offshore and marine industry, such as propeller shafts and pump parts, where saltwater resistance is paramount. It’s also widely used in aerospace for landing gear components, in oil and gas for valves and fasteners exposed to sour service, and in chemical processing equipment where strength and corrosion resistance must go hand-in-hand to ensure safety and longevity.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
