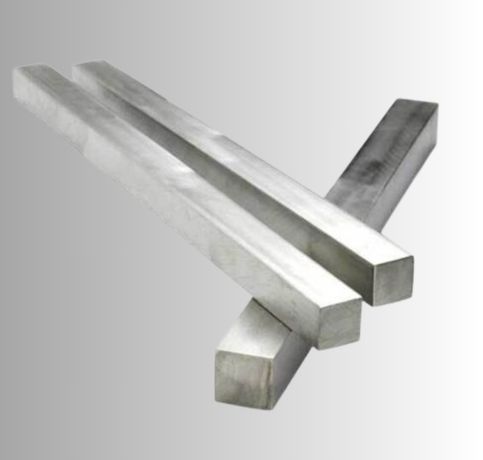

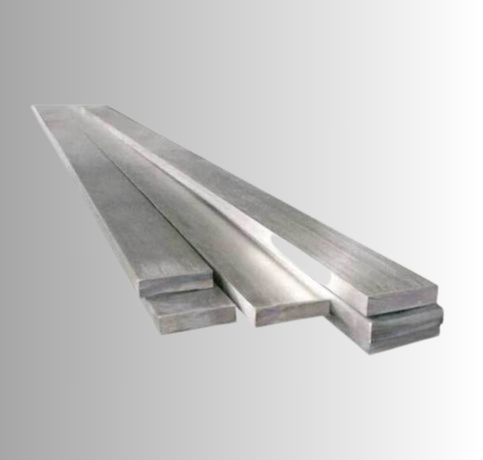

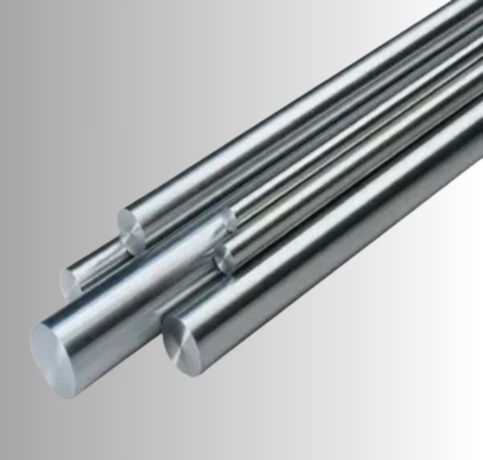

Nestled in the industrial heart of Manama, Junaid Metals has built a reputation for supplying high-performance materials that meet the demanding needs of various sectors. We take particular pride in our stock of Monel K500 bars and rods, known for their exceptional resilience. This unique alloy is a trusted partner for engineers facing challenging environments where standard materials simply fall short, offering a combination of strength and corrosion resistance our clients can depend on for their most critical projects day in and day out.
The composition of Monel K500 includes a significant nickel-copper base, but its real strength comes from the addition of aluminum and titanium. This special blend undergoes an age-hardening process, which gives the final bars and rods their remarkable mechanical properties. You can expect high tensile strength and excellent hardness, all while maintaining good ductility. This means the material is not just strong, but also tough enough to handle significant stress and impact without compromising its structural integrity.
| Standard | ASTM B865, ASME SB865 |
| Round Bar Size | 3mm~ 800mm |
| Square Bar Size | 4mm* 4mm ~100mm* 100mm |
| Flat Bar Size | 2mm ~ 100mm |
| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| Grade | Ni | Fe | C | Mn | Si | Cu | Al | S | Ti |
| Monel K500 | 63.0 min | 0.5 – 2 | 0.25 max | 1.5 max | 0.5 max | 27.0 – 33.0 | 2.3 – 3.15 | 0.010 max | 0.35 – 0.85 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Monel K500 | 2.4375 | N05500 |
Yes, Monel Alloy K500 rods are highly corrosion-resistant, particularly in marine and chemical environments. They offer excellent resistance to seawater, acids, and other harsh conditions.
Yes, Monel K500 bars can be customized in size and length to meet specific requirements. They are available in various dimensions and can be tailored for different applications.
Monel K500 bars are known for their exceptional corrosion resistance, high strength, and excellent fatigue and thermal-fatigue strength. They also offer good machinability and weldability in demanding environments.
Thanks to its unique properties, Monel K500 bars and rods are invaluable in offshore and marine engineering, where they resist saltwater corrosion and the buildup of marine organisms. You’ll also find them in pump shafts and propeller systems within the oil and gas industry, as well as in critical components for chemical processing equipment. From demanding aerospace applications to everyday precision instruments like doctor blades, these materials are chosen where failure is not an option, ensuring long-lasting performance and reliability.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
