Nestled in the heart of Manama’s thriving industrial scene, Junaid Metals has built a reputation for reliability and expertise, particularly when it comes to specialized alloys. We take pride in being your trusted source for Monel Bars and Rods, providing high-quality materials that are essential for demanding applications. Our commitment goes beyond mere supply; we offer a partnership rooted in deep material knowledge and a dedication to meeting the precise needs of Bahrain’s diverse and growing engineering and construction sectors.
The strength of Monel lies in its unique composition, primarily a blend of nickel and copper, which grants it exceptional resistance to corrosion. This alloy maintains its toughness and durability across a wide range of temperatures, from sub-zero chill to high heat. Unlike many other metals, Monel Bars and Rods offer excellent mechanical properties, including high tensile strength and good machinability, allowing them to perform reliably in some of the most challenging environments imaginable.

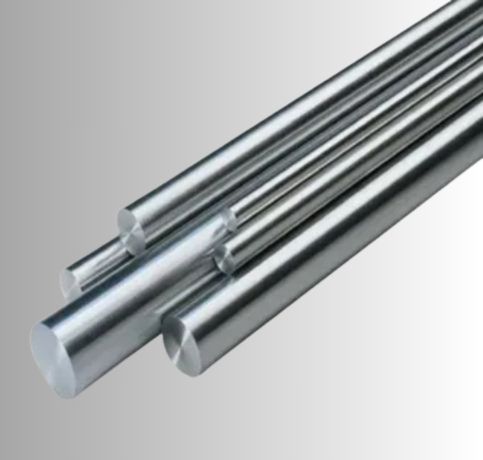

Monel Round Bar Specification : ASTM B164 / A479, ASME SB164 / A479
Dimension Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Size : 14mm-300mm
Thickness : 50 mm to 6000 mm Long
Length : 1 To 6 Meters, Custom Cut Length

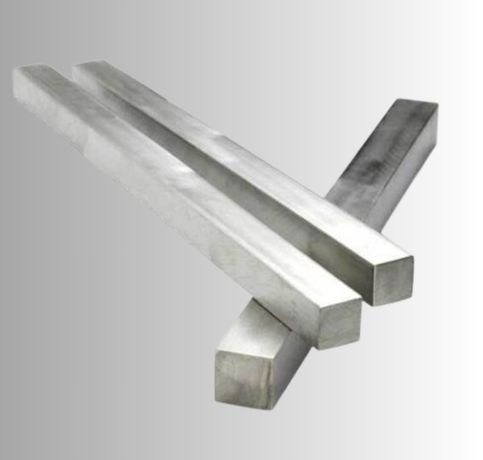

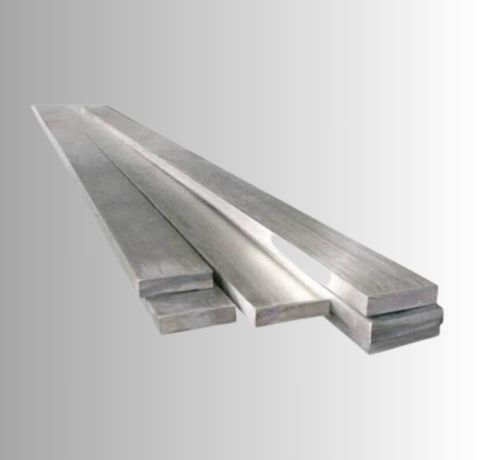

Form : Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc.
| Grade | Ni | Fe | C | Mn | Si | Cu | Al | Ti | S |
|---|---|---|---|---|---|---|---|---|---|
| 400 | 63.0- 70.00 max | 2.50 max | 0.3 max | 2.00 max | 0.50 max | Remainder | – | – | 0.024 max |
| K500 | 63.0 min | 05 – 2 | 0.25 max | 1.5 max | 0.5 max | 27.0 – 33.0 | 2.3 – 3.15 | 0.35 – 0.85 | 0.010 max |
| Grade | Tensile (ksi) | .2% Yield (ksi) | Elongation % | Hardness (HRb) |
|---|---|---|---|---|
| 400 | 75 to 90 | 25 to 50 | 60 to 35 | 60 to 80 |
| K500 | Psi – 1,60,000 , MPa – 1100 | Psi – 1,15,000 , MPa – 790 | 20 % | – |
| STANDARD | UNS | WNR. | JIS | EN |
|---|---|---|---|---|
| Monel 400 | N04400 | 2.4360 | NW 4400 | NiCu30Fe |
| Monel K500 | N05500 | 2.4375 | – | – |
Yes, Monel alloy bars are highly corrosion-resistant, particularly to seawater, acids, and alkalis. Their exceptional resistance makes them suitable for harsh environments and applications requiring durability.
Yes, Monel rods can be customized in size and length to meet specific application requirements. They are available in various diameters and lengths, ensuring versatility for different industries.
Monel alloy bars and rods perform excellently in high-temperature environments, maintaining strength and resistance to oxidation. They are ideal for applications in extreme heat, such as chemical processing and marine industries.
This impressive combination of properties makes Monel Bars and Rods indispensable across several critical industries. They are commonly found in marine engineering for pump shafts and propeller blades, where saltwater resistance is paramount. The chemical processing sector relies on them for vessels and components that handle corrosive acids, while oil and gas applications use them in valves and fasteners. From aerospace components to specialized architectural features, these versatile materials are chosen wherever long-term performance and resilience are non-negotiable.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Junaid Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Manama, Bahrain
