Welcome to Junaid Metals, your trusted partner in Manama, Bahrain for superior metal solutions. We take pride in our expertise as a dedicated manufacturer and supplier, specializing in high-performance materials like Incoloy 800H forgings. In the demanding environments of the Gulf, reliability is paramount, which is why we provide components engineered for exceptional strength and longevity. Our commitment is to deliver forgings that meet the most rigorous industry standards, ensuring your critical operations proceed with confidence and efficiency.
At its core, Incoloy 800H is defined by a robust nickel-iron-chromium alloy, carefully balanced with elevated levels of carbon and strengthened by titanium and aluminum. This specific formulation is the foundation of its remarkable mechanical performance. The alloy excels under high temperatures, maintaining its structural integrity and offering outstanding resistance to oxidation and carburization. It possesses impressive tensile strength and yield strength, allowing it to withstand significant stress and pressure without deforming, even in the most thermally intense applications.
Specifications ASTM B564 / ASME SB564, AMS 5766
Flat bar blocks up to 27″ width and 15,000 lbs.
Cylinders and sleeves up to 50″ maximum O.D. and 65″ maximum length
Discs and hubs up to 50″ diameter and 20,000 lbs.
Rolled, hand forged or mandrel forged rings up to 84″ maximum O.D. and 40″ maximum length
Rounds, shafts and step shafts up to 144″ maximum length and 20,000 lbs.
| Grade | Ni | Fe | Cr | Cu | Ti | Al | C | Mn | S | Si |
| Alloy 800H | 30.0-35.0 | 39.5 min | 19.0-23.0 | .75 max | .15-.60 | .15-.60 | .05-.10 max | 1.5 max | .015 max | 1.0 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.94 g/cm3 | 1350-1400 ℃ | Psi – 75,000 , MPa -520 | Psi – 30,000 , MPa – 205 | 30 – 35 % |
| Density | 0.287 lb/in3 / 7.94 g/cm3 |
| Melting Point | 2475 – 2525 °F/ 1357 – 1385 °C |
| Specific Heat @ 70°F | 0.11 Btu/lb•°F |
| Permeability @ 70°F Annealed | 1.014 (200 Oersted) |
| Curie Temperature | -115 °C/ -175 °F |
| Elastic Modulus | 28.50 X 106 psi |
| Electrical Resistivity @ 70°F | 595 ohm•circ mil/ft |
| Annealling Incoloy 800 | 983 – 1038 °C / 1800 – 1900 °F |
| Annealling Incoloy 800H / Ht | 1147 – 1177°C / 2100 – 2150 °F |
| Quench | Rapid Air / Water |
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST | OR |
| Incoloy 800H | N08810 | 1.4958 | Z8NC32-21 | X10NiCrAlTi32-20 | NCF 800H | NA 15(H) | ЭИ670 | XH32T |

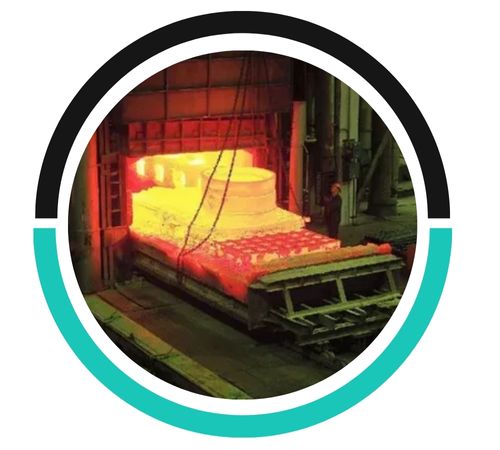

The ideal temperature range for forging Incoloy 800H is between 2100°F and 2250°F (1149°C to 1232°C). This range ensures optimal workability and preserves the material’s mechanical properties.
Post-forging operations for Incoloy 800H typically include annealing to relieve stress and enhance ductility, followed by heat treatment to achieve desired mechanical properties. Surface cleaning and inspection for defects are also essential to ensure quality.
To determine if Incoloy 800H Forgings meet your specific needs, review material specifications, including composition and mechanical properties, and consult with suppliers for customized testing or performance data. Additionally, consider your application's temperature, corrosion, and mechanical requirements.
The superior properties of Incoloy 800H forgings make them indispensable in industries where failure is not an option. They are the preferred choice for critical components in ethylene furnaces, power generation systems, and industrial heating equipment. You will find these robust forgings in essential parts like turbine blades, pressure vessels, and heat exchanger tubing. Their ability to perform reliably in extreme heat and corrosive atmospheres ensures safety and operational continuity in the petrochemical, chemical processing, and power sectors, making them a cornerstone of modern industrial engineering.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Junaid Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Manama, Bahrain
