Nestled in the heart of Manama’s bustling industrial scene, Junaid Metals stands as your trusted partner for premium aluminium solutions. We take pride in supplying robust and reliable materials, with our Aluminium 5086 Bar/Rods representing a perfect blend of strength and practicality. Sourced to meet the highest standards, this alloy is engineered for durability in demanding environments, making it a go-to choice for projects where failure is not an option. We are committed to providing not just a product, but a dependable foundation for your most ambitious creations.
The essence of Aluminium 5086 lies in its carefully balanced composition, primarily aluminium with a significant magnesium addition, which is the key to its notable strength. This alloy is further enhanced with elements like chromium and manganese, resulting in excellent corrosion resistance, especially in marine settings. Mechanically, it offers a great strength-to-weight ratio, good weldability, and impressive fatigue performance. It is these properties that allow 5086 to maintain its integrity and withstand constant stress, making it a truly resilient material for challenging applications.
| Aluminium Alloy | ASTM B211, B211, B565, B316 5082, AMS 4121 |
| Standard | ASTM, ASME, AMS, GB/T, JIS |
| Aluminium Round Bar Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |

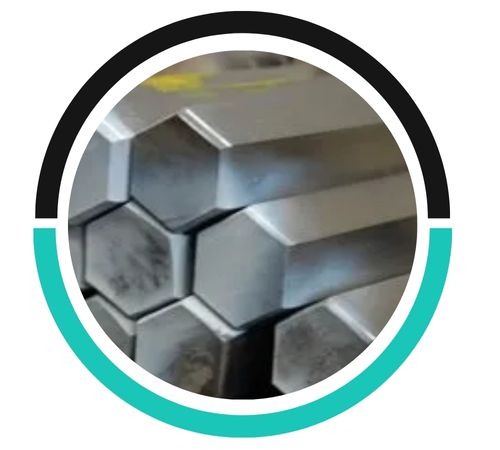

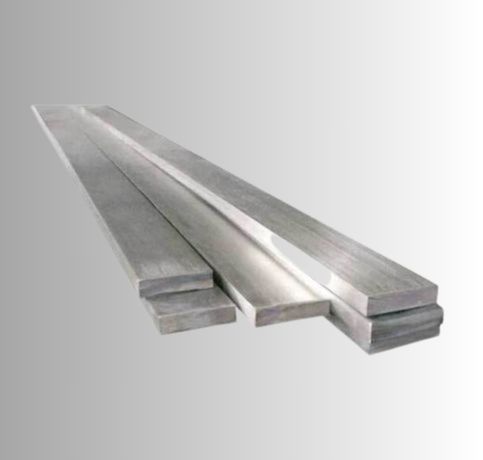

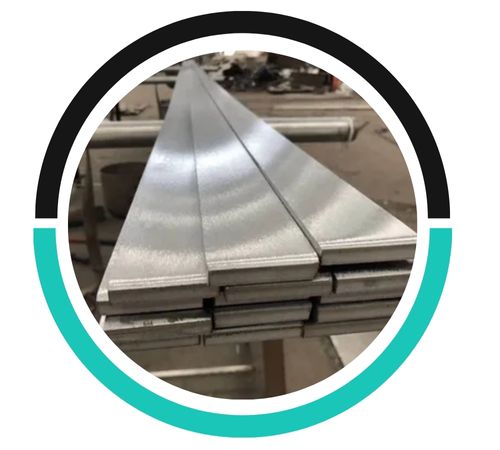

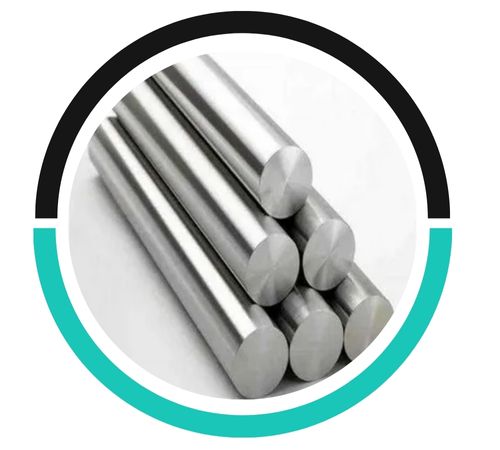

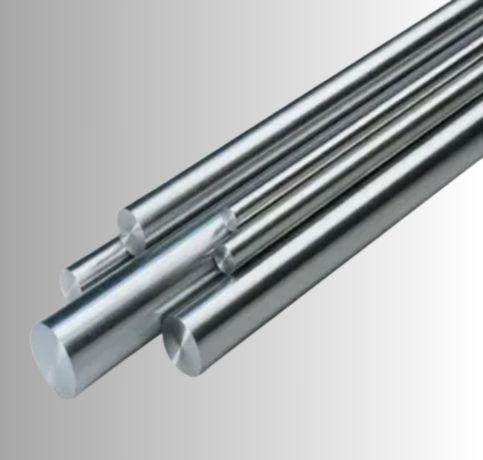

| Aluminium Bar Form | Aluminium Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |
| Aluminium Round Bar Diameter | 0.1-600mm,etc |
| Aluminium Hexagonal Bar | 0.1-600mm,etc |
| Aluminium Angle Bar Size | 0.5mm*40mm*40mm-20mm*400mm*400mm |
| Aluminium Flat Bar Thickness | 0.1-600mm,etc |
| Aluminium Flat Bar Size | 1-2500mm, etc |
| Aluminium Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Aluminium Bar | Bright, Polish & Black |
| GRADE | Si | Ir | Cu | Mn | Mg | Cr | Zn | Ti | Others, each | Others, total | Al |
| 5086 | 0.4 | 0.5 | 0.1 | 0.20-0.70 | 3.5-4.5 | 0.05-0.25 | 0.25 | 0.15 | 0.05 | 0.15 | Balance |
| Properties | Proof Stress | Tensile Strength | Hardness Brinell | Elongation |
| Metric | 125 Min MPa | 275 – 350 MPa | 75 HB | 12 Min % |
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlMg4 | AG4MC | 3.3545 | A95086 | AlMg4 | 5086 | AlMg4Mn |
| Size in mm | Average Weight | |
| KG/MTR | KG/FT | |
| 10 | 0.62 | 0.18 |
| 12 | 0.90 | 0.30 |
| 14 | 1.20 | 0.40 |
| 16 | 1.60 | 0.50 |
| 18 | 2.00 | 0.60 |
| 20 | 2.50 | 0.80 |
| 22 | 3.00 | 0.90 |
| 24 | 3.56 | 1.08 |
| 25 | 3.90 | 1.20 |
| 28 | 4.80 | 1.50 |
| 30 | 5.55 | 1.69 |
| 32 | 6.30 | 1.90 |
| 34 | 7.14 | 2.18 |
| 36 | 8.00 | 2.44 |
| 40 | 9.90 | 3.00 |
| 45 | 12.49 | 3.81 |
| 50 | 15.40 | 4.70 |
| 56 | 19.34 | 5.89 |
| 60 | 22.20 | 6.80 |
| 63 | 24.47 | 7.46 |
| 63.5 | 24.86 | 7.58 |
| 65 | 26.05 | 7.94 |
| 70 | 30.20 | 9.20 |
| 73 | 32.86 | 10.00 |
| 75 | 34.72 | 10.58 |
| 78 | 37.51 | 11.43 |
| 80 | 39.50 | 12.00 |
| 83 | 42.47 | 12.95 |
| 85 | 44.55 | 13.58 |
| 90 | 50.00 | 15.20 |
| 92 | 52.19 | 15.91 |
| 93 | 53.39 | 16.27 |
| 95 | 55.65 | 16.95 |
| 100 | 61.66 | 18.79 |
| 105 | 67.98 | 20.72 |
| 110 | 74.60 | 22.74 |
| 115 | 81.64 | 24.88 |
| 125 | 96.34 | 29.36 |
Yes, Aluminium 5086 bars are fully recyclable. Aluminium is a sustainable material that can be recycled repeatedly without losing its properties, making it an environmentally friendly option for various applications.
Yes, Aluminium 5086 bars and rods can be used for potable water applications due to their corrosion resistance and durability, making them suitable for marine environments and water treatment systems.
When installing Aluminium 5086 bars and rods, consider factors such as proper handling to avoid damage, ensuring compatibility with other materials, and protecting against corrosion by using appropriate coatings or finishes.
The unique properties of Aluminium 5086 Bar/Rods make them indispensable across a wide spectrum of industries. They are a fundamental component in marine engineering, used for constructing boat hulls, railings, and offshore platforms where saltwater corrosion is a constant threat. Beyond the sea, you’ll find this alloy in transportation for truck bodies and railcars, in architectural structures requiring both strength and a modern aesthetic, and in various high-stress industrial applications. Essentially, whenever a project demands a lightweight yet extraordinarily tough and corrosion-resistant material, 5086 is the clear and reliable answer.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
