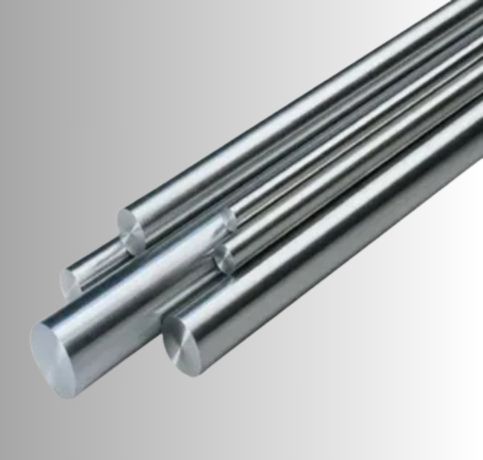

Nestled in the heart of Manama’s dynamic industrial landscape, Junaid Metals has built a reputation for delivering exceptional quality and reliability. We take pride in supplying robust materials that form the backbone of critical projects across the region. Among our standout offerings is the high-strength Aluminium 2024 T3511 in bar and rod forms, a material chosen by engineers who refuse to compromise on performance and durability for their most demanding applications.
The backbone of this material lies in its copper-rich composition, which is primarily responsible for its remarkable strength. Following a specific thermal treatment and strain-hardening process (the T3511 temper), these bars and rods achieve an outstanding balance of tensile strength and machinability. This results in a material that is not only tough and resilient against fatigue but also workable, allowing for precision fabrication into complex components without sacrificing its core integrity.
| Aluminium Alloy | ASTM B211, B211, B565, B316 5082, AMS 4121 |
| Standard | ASTM, ASME, AMS, GB/T, JIS |
| Aluminium Round Bar Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |

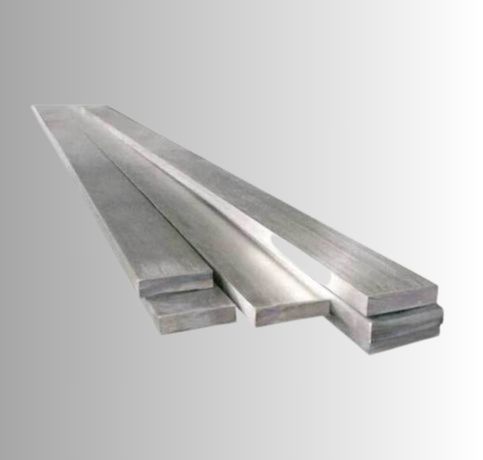

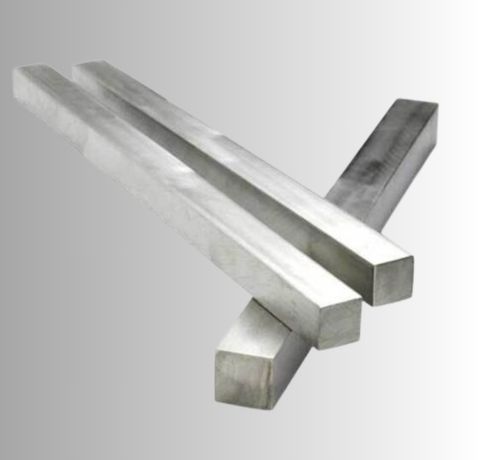

| Aluminium Bar Form | Aluminium Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |
| Aluminium Round Bar Diameter | 0.1-600mm,etc |
| Aluminium Hexagonal Bar | 0.1-600mm,etc |
| Aluminium Angle Bar Size | 0.5mm*40mm*40mm-20mm*400mm*400mm |
| Aluminium Flat Bar Thickness | 0.1-600mm,etc |
| Aluminium Flat Bar Size | 1-2500mm, etc |
| Aluminium Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Aluminium Bar | Bright, Polish & Black |
| Grade | Al | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other |
| min. | Bal | 3.80 | 0.30 | 1.20 | ||||||
| max. | Bal | 0.50 | 0.50 | 4.90 | 0.90 | 1.80 | 0.10 | 0.25 | 0.15 | 0.05 |
| Temper | Tensile Strength | Yield Strength | Elongation |
| KSI | KSI | % | |
| (annealed) | 32 | 14 | 12 |
| T3 | 63 | 42 | 15 |
| STANDARD | UNS | WERKSTOFF NR. |
| Aluminium 2024 T3511 | A92024 | 3.1355 |
| Size in mm | Average Weight | |
| KG/MTR | KG/FT | |
| 10 | 0.62 | 0.18 |
| 12 | 0.90 | 0.30 |
| 14 | 1.20 | 0.40 |
| 16 | 1.60 | 0.50 |
| 18 | 2.00 | 0.60 |
| 20 | 2.50 | 0.80 |
| 22 | 3.00 | 0.90 |
| 24 | 3.56 | 1.08 |
| 25 | 3.90 | 1.20 |
| 28 | 4.80 | 1.50 |
| 30 | 5.55 | 1.69 |
| 32 | 6.30 | 1.90 |
| 34 | 7.14 | 2.18 |
| 36 | 8.00 | 2.44 |
| 40 | 9.90 | 3.00 |
| 45 | 12.49 | 3.81 |
| 50 | 15.40 | 4.70 |
| 56 | 19.34 | 5.89 |
| 60 | 22.20 | 6.80 |
| 63 | 24.47 | 7.46 |
| 63.5 | 24.86 | 7.58 |
| 65 | 26.05 | 7.94 |
| 70 | 30.20 | 9.20 |
| 73 | 32.86 | 10.00 |
| 75 | 34.72 | 10.58 |
| 78 | 37.51 | 11.43 |
| 80 | 39.50 | 12.00 |
| 83 | 42.47 | 12.95 |
| 85 | 44.55 | 13.58 |
| 90 | 50.00 | 15.20 |
| 92 | 52.19 | 15.91 |
| 93 | 53.39 | 16.27 |
| 95 | 55.65 | 16.95 |
| 100 | 61.66 | 18.79 |
| 105 | 67.98 | 20.72 |
| 110 | 74.60 | 22.74 |
| 115 | 81.64 | 24.88 |
| 125 | 96.34 | 29.36 |
Aluminium 2024 T3511 is generally not recommended for welding due to its susceptibility to cracking and reduced strength after welding. However, specialized techniques like TIG welding and using filler materials can be employed with caution.
Yes, Aluminium 2024 T3511 bars are recyclable. Aluminium is highly recyclable without losing quality, making it an eco-friendly material for sustainable manufacturing and reducing environmental impact.
Aluminium 2024 T3511 is prone to corrosion, particularly in harsh environments with high humidity or exposure to saltwater. It is highly susceptible to pitting and stress corrosion cracking, though protective coatings can help mitigate this.
The exceptional properties of Aluminium 2024 T3511 make it a natural choice for high-stakes environments. You’ll find it at the heart of aerospace structures, from aircraft fuselages to wing components, where every gram of strength matters. Beyond the skies, it’s equally vital in the automotive racing industry for high-performance parts, in the defense sector for robust hardware, and in specialized machinery that operates under continuous stress. When a project demands a lightweight solution that simply cannot afford to fail, this is the material trusted by innovators.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
